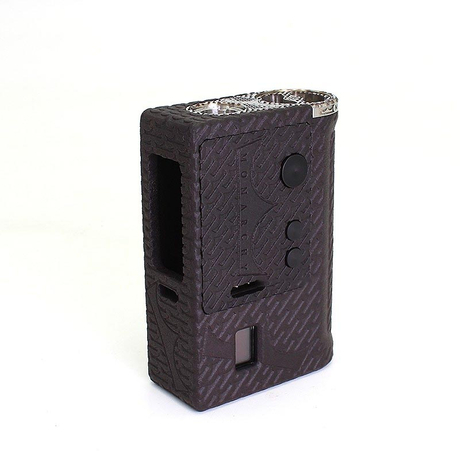

SXK MNCH Critival Q-Bot Style Boro Box Mod 5~60W, Compatible with BB / Billet Boro RBA / Tank, Laser Carving

Material: PA12 3D Print
Input voltage: 3.3~4.2V
Battery: 1 x 18650 high-rate battery (not included)
Power: 5~60W
Voltage output: 1.0~8.0V
Quiescent current: 50uA
Resistance: 0.1~3ohms
Display: 0.42 OLED
Compatible with Boro / BB / Billet RBA / Tank

OPERATION CONTROLS:

1.Power ON / OFF: Press the Power key five times to switch the power on or off state, and "SYSTEM OFF" will be displayed when the power is off.

2.Power setting:
(1) Press the power key three times to enter the power adjustment mode.
(2) In the Power adjustment mode, press the Power button twice for 0.5 seconds to switch the value adjustment direction. Button increasing mode, button decreasing mode. Press the Power button to adjust the power, and hold down the power button to speed up the power setting speed.
(3) After stopping the power button for 1 second, the device automatically confirms the default power value, the arrow stops blinking, and returns to the main screen.
3. Use of the product: Long press the POWER button to make the atomizer start to work, release the POWER button, the atomizer will stop working, the maximum single heating TIME is 10S, more than 10S, the device will automatically stop output, and prompt "OVER TIME".

SAFETY PROTECTION /ERROR MESSAGES

Check Atomizer: If the device does not detect an atomizer no power output will be allowed. Pressing the fire button will display the "CHECK ATOMIZER" warning.
Low Battery: When the battery voltage is below 3.3V, no power output will be allowed. Pressing the fire button will display the "low battery" warning.
Over Voltage: When the battery voltage is detected to be higher than 4.3V, it is regarded as an abnormal power supply. No output power will be allowed, pressing the fire button will display the "HIGH VOLTAGE" warning.
Overheat Protection: If the on-board temperature reaches an unsafe limit, no power output will be allowed. Pressing the fire button will display the "TOO HOT" warning.
Short Circuit: If there is a problem with the installed coil or the coil circuit is shorted no output power will be allowed, pressing the fire button will display the "SHORTED" warning.
Low Resistance Protection: If the attached atomizer is under the minimum specified resistance limit, no output power will be allowed. Pressing the fire button will display the "LOW RES" warning.
High Resistance Protection: If the attached atomizer is over the maximum specified resistance limit, no output power will be allowed. Pressing the fire button will display the "HIGH RES" warning.
