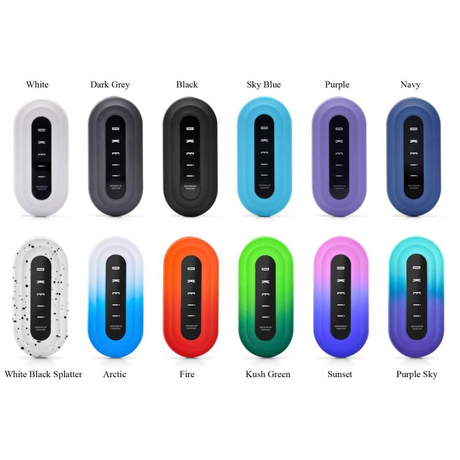

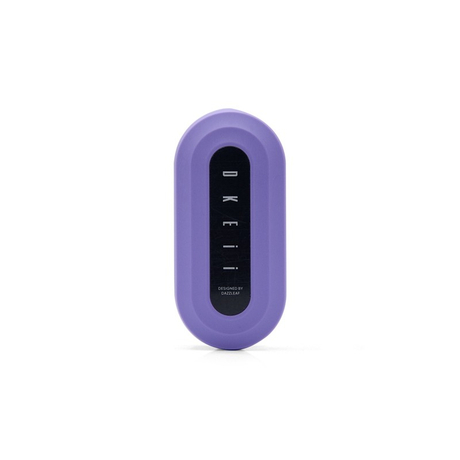

Authentic DAZZLEAF DKEii 650mAh Oil / WAX Cartridge Battery 650mAh, Pop Up 510 Thread Car Key Shape Design

Specifications:
An unparalleled ergonomic design that feels like it belongs in your hand;
Powered by a high-quality 650mAh li-ion rechargeable battery core;
Four power/voltage settings (2.4V, 3.0V, 3.6V, 4.2V);
Preheating 1.8V for 10 seconds for any thickness concentrate;
4 LED lights indicate battery life and voltage settings;
Screw-in cartridge;

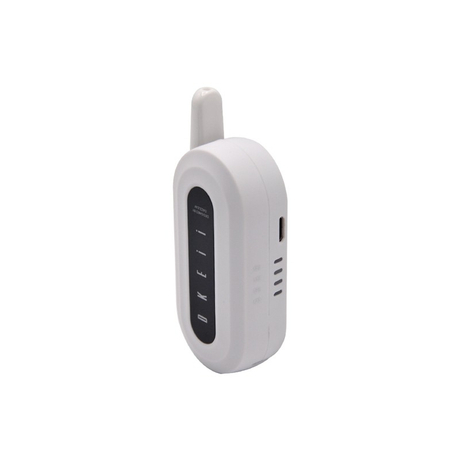

Rotary pop-up design;
Supports atomizers with a resistance range above 1.0ohm;
Supports 510 thread cartridges up to 12.5mm diameter;
Micro USB charging port.

Usage Instructions:
1. Power On / Off
Press the power button 5 times consecutively

2. Memory Function
The DKEii features a smart memory function to memorize the current voltage before powering off to ensure that the voltage remains unchanged after the device is restarted.

3. Preheating Function
Turn on the DKEii and press the power button two times consecutively to activate the 10 second preheating (1.8V) function.

4 indicator lights will be flashing until the preheating process is finished.
Press the power button once to stop preheating at any time.

4. Variable Voltage
There are 4 indicator lights to show 4 different levels of voltage.
Press the power button 3 times consecutively to change the voltage level.
Voltage settings:
- 1st indicator light - 2.4V
- 2nd indicator light - 3.0V
- 3rd indicator light - 3.6V
- 4th indicator lights - 4.2V


5. Battery and Charging

3 different colors indicate battery level:
- Green - 80-100%;
- Blue - 50-80%;
- Red - 0-50%.

When the output power is low, the DKEii will stop working and 4 red LED lights will flash 10 times as a hint to charge.


Charging states:
- Less than 20% - 4 lights flash regularly from the bottom to the top. Indicators color - Red.
- From 20 to 50% - 1st indicator is constantly lighted up, 3 indicators are flashing from the second to the fourth indicator regularly. Indicators color - Red.
- From 50 to 80% - 2 bottom indicators are constantly lighted up, 2 top indicators are flashing from the third light to the fourth indicator regularly. Indicators color - Blue.
- From 80 to 99% - 3 bottom indicators are constantly lighted up, the top indicator is flashing quickly and continuously. Indicators color - Green.
- 100% - All Green indicator lights will flash 20 times as a hint to unplug.


6. Protection Function
Short circuit protection: The device will stop working immediately when a short circuit is detected and 4 red indicator lights flash 3 times.
Overcharging protection: When your DKEii is fully charged, it will stop charging to prevent overcharging.
Overheating protection: The DKEii will pause working for a few seconds after being continuously heated for 15 seconds to prevent overheating. Meanwhile, the 4 LED indicator light will flash two times.

7. Attention
The DKEii should be charged for an hour before the first use.
